Quick Details

  • Condition: New
  • CNC or Not: CNC
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: YIHAI
  • Model Number: YH-6090 3D Mini Desktop Cnc Router
  • Voltage: 220V/50HZ
  • Power(W): 1.5KW/2.2KW
  • Dimension(L*W*H): 1400*1100*1350mm
  • Weight: 370KGS
  • Certification: CE
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Working area(mm):: 600*900*120mm
  • Spindle:: 1.5 kw Water Cooling Spindle [Air Cooling Spindle]
  • Transmission:: X, Y Gear Rack and Z Axis By Ball Screw
  • Motor:: Stepper motor[Servo motor]
  • Guide:: Taiwan Hiwin linear rail
  • Inverter:: Fuling/Sunfar
  • Control System: NC-studieo as standard/DSP Offline Control System
  • Working Voltage: AC220V
  • Software environmant: Windows 98/2000/XP
  • Max Engraving Speed: Greater Than 25m/min

Packaging & Delivery

Packaging Details Plywood caes which are very strong and suitable for shipping
Delivery Time 5-7 Working days after the deposit/supply in stock



 cheap cnc router

Product Description



Product Description

1.Standard configuration of 6090 model:

CE standard,  effective working area;

cast steel square tube structure;

ball screw transmission;

Mach3 control system, stepper motor;

1.5KW water cooled spindle, 1.5KW inverter;

Leadshine driver;

Round orbit, including Type3 software

With rotary.



2.Technical parameters



Model

YH6090

Machine body

whole cast iron

Working area(mm)



600×900mm

Z-axis working area

200mm

Table size

720*1150mm

X/Y/Z movement

Precision ball screw/Germany

Guide linear

20 square rail/Taiwan

Cut thickness of material

0-10cm

Max.Speed

6000mm/min

Working speed

0-4000mm/min

Machining pass

5mm

Mechanical precision

0.015mm

Software

Type3,Artcut,Artcam software

Power source

AC 220V/50-60Hz

Driver type

Stepper motor

Spindle power

2.2KW variable speed,water-cooled

Spindle speed

0-24,000rpm

Tool diameter

1-12.7mm

Collet

Collet ER20 12mm, 12.7mm, 6mm, and 3.175mm

Control system

DSP0501,128M

Command

HPGL.G code,u00,mmg,plt

Rotary

With rotary device



3.1.5KW/2.2 KW spindle :



4.Hiwin Linear guide rail & ball screw transmission:







5.DSP:RichAuto A11e & NK105





6.Rotary Device:







7.Applicable industrial:

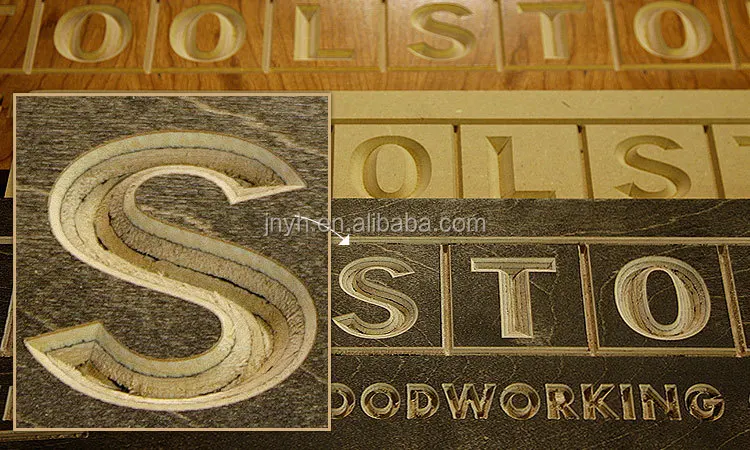

 It is suitable for the wave board processing, wooden door, screen, craft, window processing and different kinds of furniture assistance processing. Also suitable for the aluminium board, plastic board, artificial marble as well as the light metal industry
Packaging & Shipping



Outside Package

Packaged in one strong plywood case.




Delivery Method

By Ocean shipping



Our Services



1.Kindly Tips:



All the parts of machine can do some changes to meet your requirements.



1.motor (step motor or servo motor optional)



2.spindle (air cooled or water-cooled optional )



3.guide rail (linear guide rail or square linear guide optional )



4.the table of the machine (Vacuum table,T-shot table,Combination of T-shot &Vacuum table,Normal table,Table moving)



2.Payment terms:

1 You can pay 30% by T/T(bank transfer)   in  advance ,when we finished the machine ready for shipping ,you pay the  70% left.

2 You can pay by  Escrow  by  Alibaba



3.Delivery time:

within10working  days.If we see the scanner of  bank  receipt /confirmation by email ,we  will take into producing ,ad ship it to you .



4.Our technical support and quality assurance as follows:

1.warranty:1 years

2.replace all accessories during the waranty period for free(except wearing parts and artificial damage)

3.Provide 24 th technology online support
